NAC

NAC Hydraulic Bending Machine

Features of NAC Hydraulic Bending Machine:

  1. Three-cylinder structure, multi cylinder structure adopted when machine above 4 meters
  2. Schneider Electric
  3. BOSCH compositive hydraulic system
  4. Upper mold wedge clamping
  5. With digital display on foot switch control
  6. Inward seal components with high quality

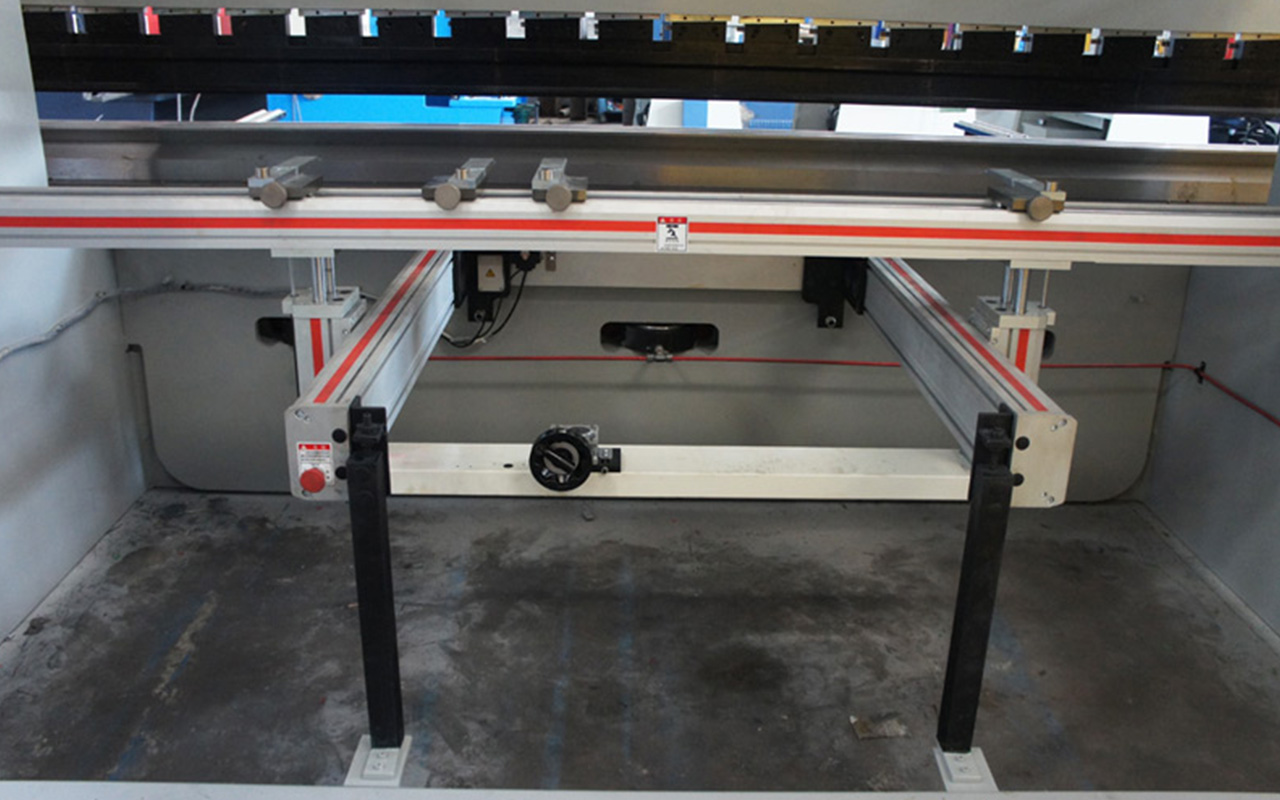

  7. Permit fine micro adjustment with mechanical back gauge device and ram strake, with a counter displaying

Special Notes: NAC Series bending machine also can be equipped with CNC system.

technical manual

Request

technical data

Nominal pressure of machine (KN):

Model   40/2000 40/2500
Nominal pressure of machine KN 400 400
Length of working table mm 2000 2500
Distance between horsing mm 1640 2050
Throat depth mm 200 200
Max.open height between working table and ram mm 360 360
Power of main motor KW 4 5,5
Overall dimensions  L*W*H mm 2060x1160x2050 2600x1660x2050
Weight of machine kg 3300 3500
Model   63/1600 63/2500
Nominal pressure of machine KN 630 630
Length of working table mm 1600 2500
Distance between horsing mm 1340 2100
Throat depth mm 200 250
Max.open height between working table and ram mm 360 360
Power of main motor KW 5,5 5,5
Overall dimensions  L*W*H mm 1700x1500x2010 2600x1690x2350
Weight of machine kg 3000 4220
Model   100/3200 100/4000
Nominal pressure of machine KN 1000 1000
Length of working table mm 3200 4000
Distance between horsing mm 2600 3300
Throat depth mm 320 320
Max.open height between working table and ram mm 410 415
Power of main motor KW 7,5 7,5
Overall dimensions  L*W*H mm 3260x1753x2500 4060x1790x2500
Weight of machine kg 8000 10000
Model   125/3200
Nominal pressure of machine KN 1250
Length of working table mm 3200
Distance between horsing mm 2600
Throat depth mm 320
Max.open height between working table and ram mm 415
Power of main motor KW 7,5
Overall dimensions  L*W*H mm 3280x1790x2600
Weight of machine kg 9000
Model   160/3200 160/4000
Nominal pressure of machine KN 1600 1600
Length of working table mm 3200 4000
Distance between horsing mm 2600 3300
Throat depth mm 320 320
Max.open height between working table and ram mm 465 465
Power of main motor KW 11 11
Overall dimensions  L*W*H mm 3260x1930x2800 4060x1930x2800
Weight of machine kg 10500 14000
Model   200/4000 200/6000
Nominal pressure of machine KN 2000 2000
Length of working table mm 4000 6000
Distance between horsing mm 3300 5500
Throat depth mm 320 380
Max.open height between working table and ram mm 465 465
Power of main motor KW 11 11
Overall dimensions  L*W*H mm 4060x1930x2800 6100x1950x2900
Weight of machine kg 15000 25000
Model   250/4000
Nominal pressure of machine KN 2500
Length of working table mm 4000
Distance between horsing mm 3300
Throat depth mm 320
Max.open height between working table and ram mm 465
Power of main motor KW 15
Overall dimensions  L*W*H mm 4060x2340x3200
Weight of machine kg 21000
Model   300/3200
Nominal pressure of machine KN 3000
Length of working table mm 3200
Distance between horsing mm 3300
Throat depth mm 400
Max.open height between working table and ram mm 560
Power of main motor KW 22
Overall dimensions  L*W*H mm 3200x2570x3560
Weight of machine kg 22000
Model   320/4000 320/6000
Nominal pressure of machine KN 3200 3200
Length of working table mm 4000 6000
Distance between horsing mm 3300 5500
Throat depth mm 400 400
Max.open height between working table and ram mm 560 465
Power of main motor KW 22 18,5
Overall dimensions  L*W*H mm 4060x2570x3560 6100x1800x2700
Weight of machine kg 24500 31000
Model   500/8000
Nominal pressure of machine KN 5000
Length of working table mm 8000
Distance between horsing mm 6800
Throat depth mm 415
Max.open height between working table and ram mm 520
Power of main motor KW 37
Overall dimensions  L*W*H mm 8000x2700x3300
Weight of machine kg 48000
